A piling rig is a heavy-duty foundation construction machine designed to install foundation piles into the ground to form stable deep foundations for high-rise buildings, bridges, highways, viaducts and infrastructure projects. It includes impact hammer, vibratory, hydraulic and rotary drilling types, adapting to diverse soil, sand and rock strata. The crawler chassis delivers great mobility on uneven construction sites, while the hydraulic system ensures precise positioning and stable piling operations. It is widely used for bored piles, micro piles, foundation reinforcement and ground improvement, greatly improving ground bearing capacity and preventing foundation settlement, which is essential for large civil engineering and infrastructure construction worldwide.
It effectively prevents landslides and geological hazards, widely adopted in infrastructure, water conservancy and mining engineering globally.
Application Scope
- High-rise building foundation construction, factory and residential building pile foundation works

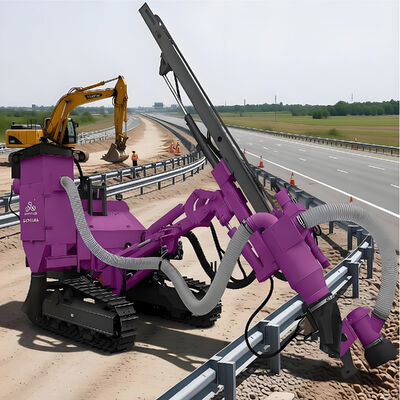

- Bridge, viaduct, highway, railway and roadbed reinforcement projects
- Urban municipal engineering, subway foundation pit support and underground pipe gallery construction
- Water conservancy, river revetment, wharf and flood control projects
- Slope stabilization, deep foundation pit anchoring, anti-floating foundation reinforcement, tunnel pre-support and geological disaster prevention

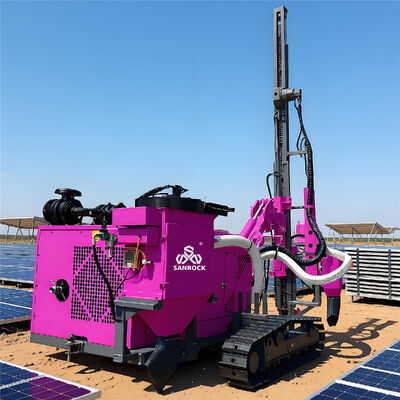

- Photovoltaic, wind power, new energy infrastructure foundation construction

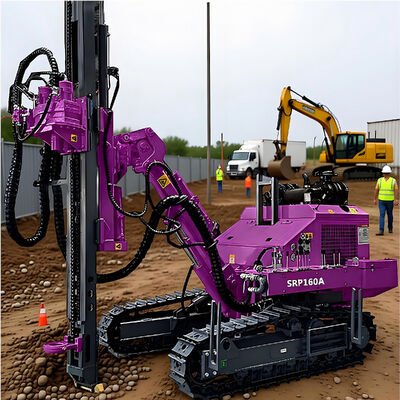

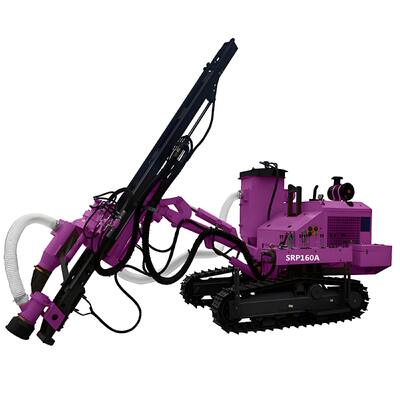

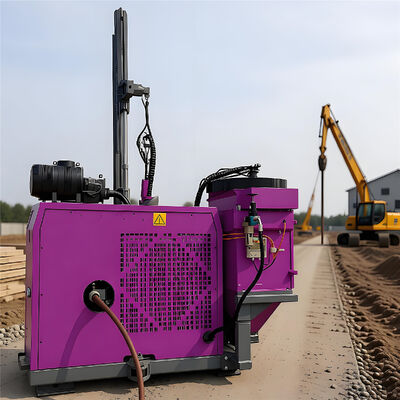

Products Description
| Brand Name:SANROCK Product Name:Pile Driver Engine Model: 73.5KW /78KW Engine Type:Water-cooled six-cylinder EFI diesel engine Rated power:73.5/2200Kw/RPM,78/2200Kw/RPM Drill rod changer Hole diameter :90-160mm Rod length:3m Rod diameter:60/64/76mm Rod quantity:7 Dust collector :Dry tydraulic dust collecting method (Wet type optional) Undercarriage Track width :253mm Groundclearance :420mm Track oscillation :±10° Walking speed :low 2, high 3 km/h Grade ability:30° Hydraulic system Hydraulic pressure :18bar (high pressure) Rotation motor Rotation rate :0-140rpm Max. rotation torque :3220Nm Feeding method Cylinder plus chain Feeding force :6KN Lifting force :16KN Feeding stroke :4105mm Promote compensation :1250mm Dimension(L*W*H):5500*2100*2200mm Weight:5600kg |
