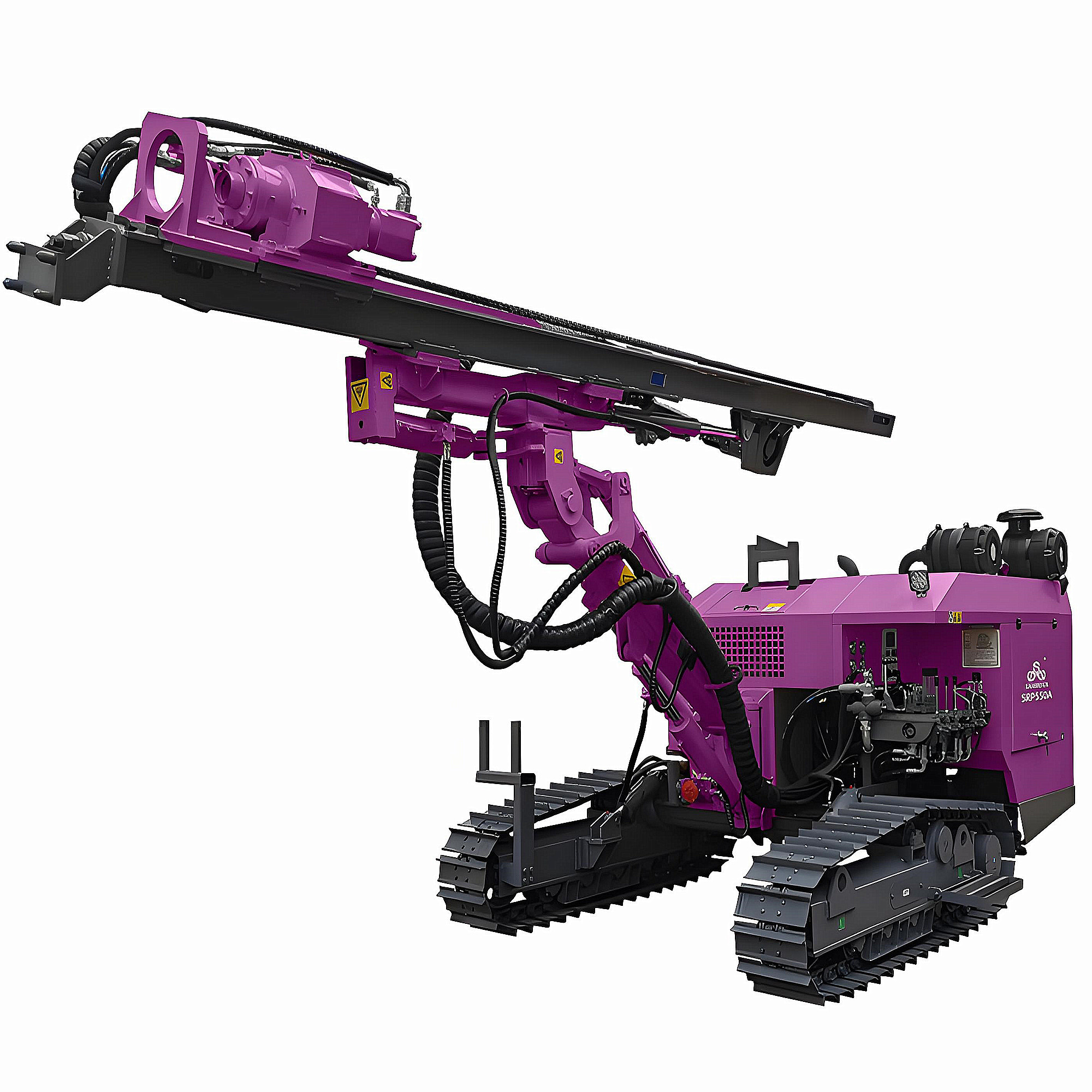

The anchoring piling rig, also known as an anchor drilling rig, is a specialized heavy engineering machine for ground anchoring and micropile construction. Primarily full-hydraulic driven, it consists of a rotary power system, feeding system, adjustable mast, crawler travel chassis, outrigger supports and control system. Its core function is to drill accurate boreholes, install anchor bolts, soil nails, anchor cables and micro piles, then conduct grouting for permanent ground reinforcement.
It is widely applied in highway and railway slope reinforcement, urban deep foundation pit bracing, hydropower projects, tunnel pipe shed support, mine roadway reinforcement and anti-floating foundation engineering. It supports multiple drilling technologies including down-the-hole hammer drilling, spiral auger drilling and casing drilling, capable of multi-directional and inclined drilling to meet complex construction requirements. The crawler base enables flexible movement on uneven, mountainous and confined job sites, while hydraulic outriggers provide rigid stability during high-load drilling.
Key advantages include high torque output, precise angle control, good adaptability to mixed strata, and integrated anchoring and grouting workflows, greatly improving construction efficiency and ensuring long-term slope and foundation stability. It serves as essential equipment for geological disaster prevention and deep foundation safety.
The crawler chassis delivers excellent mobility on complex construction sites, while the hydraulic support legs ensure stable operation. It features high drilling precision, flexible angle adjustment and strong terrain adaptability, effectively preventing landslides and foundation deformation to improve overall geostructure safety.
Products Description
|
Product Name
Pile Driving Machine
Application
Foundation Construction Works Keywords
Crawler Pile Drive
Drill diameter
90-500mm
Feature
High Performance
Max. Rotation Torque
7320nm
Feeding Stroke
4105mm
Rotation Rate
0-140rpm
Groundclearance
350mm
Walking speed(km/h)
2.5--3km/h
|
|
|
Dimension(L*W*H)
6000*2150*2600mm
|
|
|
Weight
6600 kg
|
Company Profile
1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
