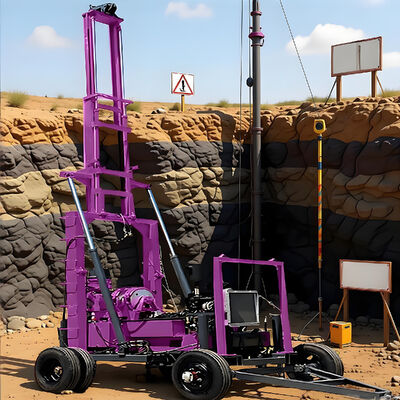

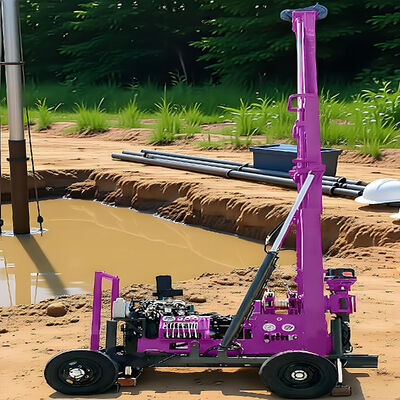

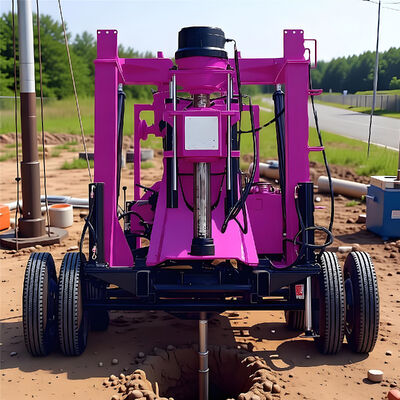

The SANROCK XYX-3 Core Drilling Rig is a high-performance hydraulic diamond core drilling machine designed for geological exploration, mineral prospecting, and geotechnical investigation. With a maximum drilling depth of 600 meters and an open hole diameter of 75-325mm, this spindle-type core drill rig delivers reliable rock core sampling across diverse geological formations.

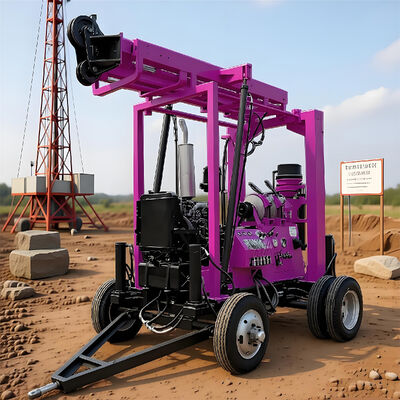

Powered by a robust brand diesel engine and mounted on a heavy-duty 6-wheel trailer chassis, the XYX-3 offers exceptional mobility and can be towed directly to remote exploration sites. The high-strength tower oil cylinder and hydraulic carriage rig ensure smooth operation and consistent drilling performance even in hard rock conditions.
Key Features:
●Max Drilling Depth: 100m / 200m / 300m / 500m / 600m
●Mobility: 6-wheel trailer mounted, easy towing
●Application: Geological exploration, mineral exploration, water well drilling, geotechnical survey
●Core sampling method: Diamond core drilling / tungsten carbide bit compatible
After-Sales Service: Online technical support, field maintenance available, 1-year warranty on main components.
Product Description
| Type:Core Drilling Rig Power Type:Diesel Drilling depth:600m Drilling diameter:75-300mm Open hole diameter:300mm Final hole diameter:75mm Drill pipe:Φ60 Drilling inclination:90°--65° Vertical axis forward speed:32-1057r/min Vertical axis reversal speed:29-137r/min Vertical axis travel:600mm Vertical shaft bore diameter:96mm Vertical axis to enhance ability:60kN Single rope to enhance speed:0.5-1.9m/s Rope diameter:12.5mm Single rope to enhance ability:30kN Reel diameter:300mm Reel capacity:65m Mud pump (optional) Horizontal three-cylinder BW-250 mud pump Displacement:250L/min Work pressure:80kgcm2 Intake pipe diameter:76mm Outlet diameter:51mm Double gear pump:CBF-F63/25 Pre-flow pressure:63L/min 20Mpa Post-flow pressure:25L/min 20Mpa Diesel engine:CloudYN27/power 42kw / 2400rpm Motor:Y180L-4/22kW/1470rpm Rig weight:3600KG Dimensions:2900×2560×3300mm |
Company Information
Certificate
1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
