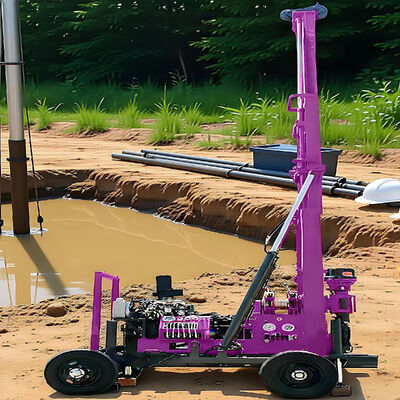

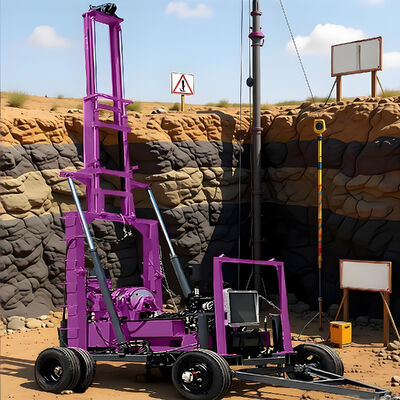

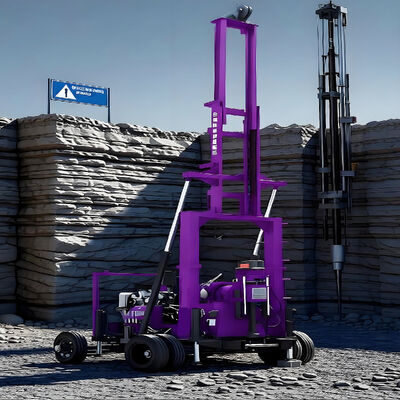

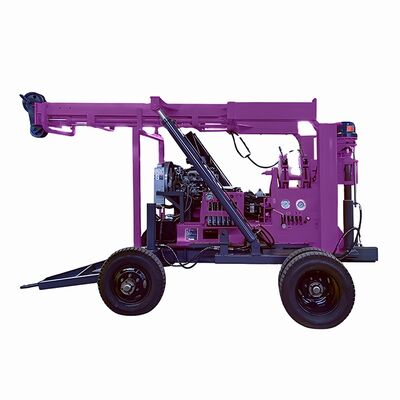

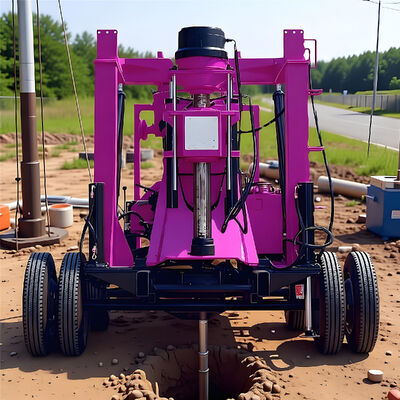

Wide Application Range: XYX-3 wheeled hydraulic core drilling rig is suitable for mineral exploration drilling, geological survey, hydrogeological investigation, oil and gas exploration and water well drilling, meeting multiple drilling project requirements.
Wheeled Hydraulic Structure: Equipped with wheeled traveling system and hydraulic leveling cylinders, this core drilling machine is easy to transport, fast to relocate and convenient for on-site leveling, improving overall working efficiency.
High Drilling Efficiency: Hydraulic feed system provides stable and powerful thrust, while the vertical spindle rotary structure ensures smooth and efficient core drilling performance in different formations.
Hydraulic Chuck System: Hydraulic chuck enables rod changing without stopping the drilling rig, increasing safety, reducing downtime and improving drilling productivity.
High-Pressure Capability: Drills depths up to 130-600 meters for deep water wells.
High-Pressure Capability: Drills depths up to 130-600 meters for deep core drilling rig.
Versatile Drilling: Handles open hole diameters from 220 mm to 325 mm.
Easy Operation: Simple and straightforward design for quick setup.
Core Driling Function: Effortlessly penetrating hard rock fomations to retrieve high-guality, intact core samples
Accessories can be added: Diesel Engine Gear Components Mud Pumps & Air Compressors.
Competitive Pricing: Offers a competitive price for a heavy-duty water well drilling rig.
Customizable Design: Can be tailored to fit various terrain types and drilling needs.
Efficient Hydraulic System: Built with high-quality components for optimal drilling efficiency.
Product Description
| Type:Core Drilling Rig Power Type:Diesel Drilling depth:600m Drilling diameter:75-300mm Open hole diameter:300mm Final hole diameter:75mm Drill pipe:Φ60 Drilling inclination:90°--65° Vertical axis forward speed:32-1057r/min Vertical axis reversal speed:29-137r/min Vertical axis travel:600mm Vertical shaft bore diameter:96mm Vertical axis to enhance ability:60kN Single rope to enhance speed:0.5-1.9m/s Rope diameter:12.5mm Single rope to enhance ability:30kN Reel diameter:300mm Reel capacity:65m Mud pump (optional) Horizontal three-cylinder BW-250 mud pump Displacement:250L/min Work pressure:80kgcm2 Intake pipe diameter:76mm Outlet diameter:51mm Double gear pump:CBF-F63/25 Pre-flow pressure:63L/min 20Mpa Post-flow pressure:25L/min 20Mpa Diesel engine:CloudYN27/power 42kw / 2400rpm Motor:Y180L-4/22kW/1470rpm Rig weight:3600KG Dimensions:2900×2560×3300mm |
Company Information
Certificate
1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
