Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig

1 세트/세트
MOQ
negotiable
가격
Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
제품명: 우물 드릴링 장비
이름: 트럭은 우물 굴착 장치를 탑재했습니다
전원 유형: 디젤
전력(w): 70KW /90KW /132KW
드릴링 깊이: 300m
드릴링 직경: 260 밀리미터, 350 밀리미터, 505 밀리미터
회전식 토크: 9500-15500N.m
회전 속도: 0-90 Rpm
머드 펌프: BW450/30 BW600/30 BW850/30
애플리케이션: 잘 구멍을 뚫은 우물 굴착 장치 모바일 드릴링 장치
특징: 다중기능적인 높은 드릴링 효율, 수력 제어용
드릴 로드 지름: 102/108/114 밀리미터
드릴 로드 길이: 2.0m 3.0m 6.0m
유형: 로타리 드릴링 장비
보증: 1년
용법: 물 잘
치수(l*w*h): 11500*2500*4150MM
무게: 29000 KG
강조하다:

fast rotating water well drilling rig

,

portable water well drill rig with compressor

,

remote area truck mounted drilling equipment

기본 정보
원래 장소: 중국 저장성
브랜드 이름: SANROCK
인증: IOS9001 CCC
모델 번호: SRTM300
결제 및 배송 조건
포장 세부 사항: 기계 용 누드 패키지, 예비 부품 용 목재 상자 패키지 또는 고객 요구.
배달 시간: 30일
지불 조건: L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram
공급 능력: 한 달에 1000 세트/세트
제품 설명

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 0

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 1

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 2

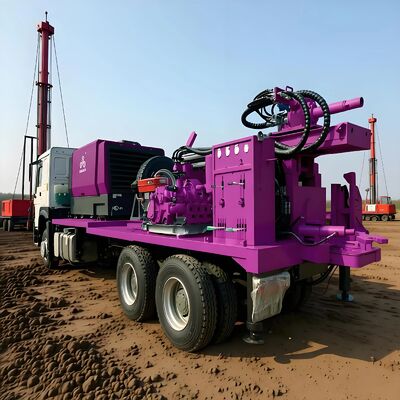

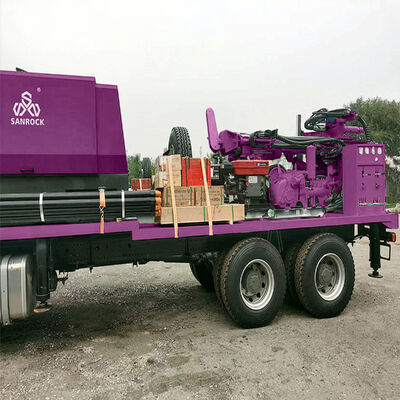

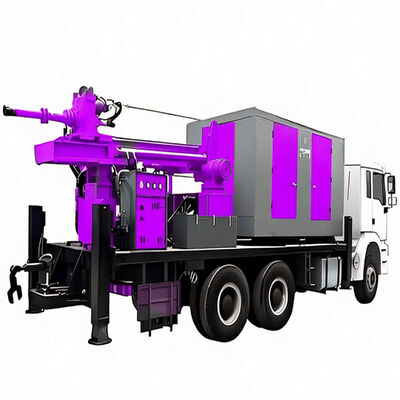

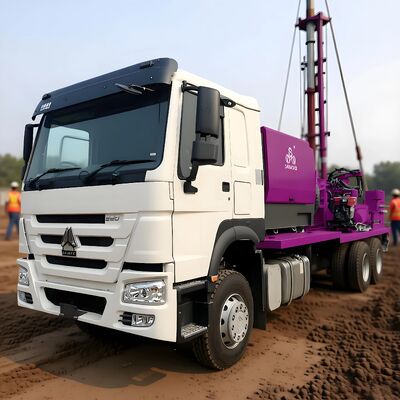

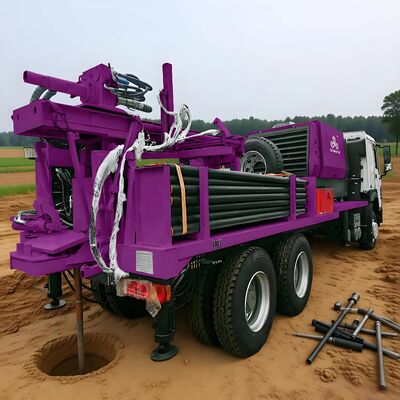

Truck-Mounted Water Well Drilling Rigs in Remote Areas
The deployment of truck-mounted water well drilling rigs is absolutely vital for establishing water access in remote and off-grid locations. These powerful, self-contained units are engineered to overcome the primary challenges of remote drilling: difficult terrain and the absence of local infrastructure.

Their key advantage is unmatched mobility. Mounted on robust, all-terrain truck chassis, these rigs can traverse rough, unpaved roads to reach isolated villages, mountainous regions, and vast rural landscapes where conventional drilling equipment cannot go. Once on-site, their self-sufficient operation is critical. Equipped with an onboard power source (typically a diesel engine), they can perform drilling operations entirely independently, without needing connection to an electrical grid—a feature indispensable in areas with no existing power supply.

These rigs are the backbone of sustainable development in remote territories. They are primarily used for:
Providing Essential Drinking Water: Drilling wells for villages, schools, and homesteads, transforming lives by bringing a reliable source of clean water directly to the community.
Supporting Agriculture and Livestock: Enabling farming and ranching in arid regions by creating water sources for irrigation and animal husbandry, which in turn supports local food security and economies.
Enabling Disaster Relief and Emergency Response: Rapidly deploying to areas hit by droughts, earthquakes, or other disasters to drill emergency wells, providing an immediate and crucial lifeline for survival.
In essence, in the world's most hard-to-reach places, the truck-mounted water well drilling rig is more than just a machine; it is a mobile lifeline, bringing the fundamental resource of water directly to where it is needed most.

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 3

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 4

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 5

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 6



Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 7


Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 8

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 9

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 10

Products Description

SANROCK TRUCK-MOUNTED DRILLING RIG SRTM300C COMPREHENSIVE OVERVIEW
DEPTH
300-400M
300-400M
300-400M
DRILLING DIAMETER
260MM
350MM
505MM
DIMENSIONS
9500*2500*3350MM
10500*2500*3600MM
11500*2500*4150MM
TOTAL WEIGHT
22000KG
25000KG
29000KG
TRUCK CHASSIS
POWER
400HP
400HP
400HP
DRIVING FORM
6*4
6*4
6*4
DRILLING TOWER,SECOND FLOOR CHASSIS
DRILLING TOWER
RETRACTABLE
RETRACTABLE
FIXED PIPE RACK TYPE
DRILL TOWER LOAD
28T
45T
50T
DRILL TOWER HEIGHT
6M
8M
8M
PULL DOWN
10T
15T
15T
PULL UP
20T
25T
30T
DRILLING RIG POWER
DIESEL ENGINE
OPTIONAL
Customization
Customization
RATED POWER
70KW
90KW
132KW
TOOL HOIST
MODEL
ZYJ2B
SINGLE ROPE PULL UP
2T
HYDRAULIC POWER HEAD
TORQUE
9500NM
11500NM
15500NM
REVOLUTIONS
0-70RPM
0-90RPM
0-90RPM
OTHER PARTS AND COMPONENTS
FOAM PUMP
B-36EX1
FLOW
42L/MIN
PRESSURE
4MPA
REVOLUTIONS
660R/MIN
MUD PUMP
BW450/30
BW600/30
BW850/30
FLOW
450L/MIN
600L/MIN
850L/MIN
PRESSURE
3MPA

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 11

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 12

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 13

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 14

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 15

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 16

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 17

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 18

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 19

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 20


 Company Profile

Quzhou Sanrock Heavy Industry Machinery Co.,Ltd is founded in 2017, fastly develop as a key enterprise in the industry of mine field, geological exploration, water well field and engineering construction field, with the ability to research, manufacture and market.
Sanrock products now cover more than 10 species such as:
Mining Drilling Rig                           Engineering Drilling Rig
Underground Drilling Rig                          Solar Pile Drilling Rig
Water Well Drilling Rig                            Rotary Drilling Rig
Core Drilling Rig                        Air Compressor
We have many year experience in these fields to offer various solutions, with ISO 9001 and CE certificate to guarantee our quality control.  We also have excellent engineer and sale teams to serve different customers' demand.
We also offer comprehensive after-sales service support, including on-site installation guidance, operation training and regular maintenance services, to ensure that customers have no worries during the use of the equipment.
We Sanrock here wish to hand in hand with our customers,create better future!
This is just a part of the overseas clients who came to our company to negotiate cooperation, sign contracts and take photos.
We welcome more overseas clients to come to our company for negotiation and cooperation.

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 21

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 22

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 23

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 24

Fast Rotating Water Well Drilling Equipment With Compressor Remote Area Portable Water Well Drill Rig 25

Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.


How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.


How is your quality control?
We have our own experienced QC.  There will be strict inspection and testing for every order before shipping out.
Our comprehensive inspection service goes beyond basic checks. We analyze performance,and provide a detailed report to maximize your uptime, reduce operating costs, and extend the lifespan of your equipment.
