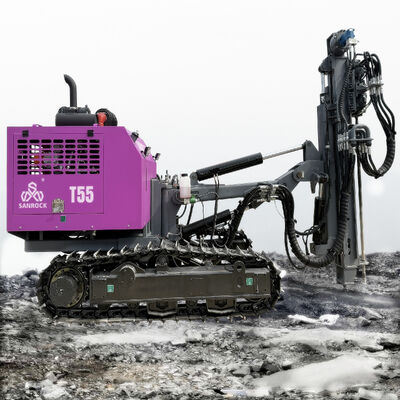

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig Manufacturer

한 달에 1 세트/세트
MOQ
negotiable
가격
Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
제품명: 탑 해머 DTH 드릴링 장비
이름: 광산 굴착기,수력 굴착기
전원 유형: 디젤
전원 (W): 2200rpm에서 60kw
시추 직경: 40-100mm
드릴링 깊이: 20m
공기 소비: 1.8-5m3/분
보행 속도: 2.5km/h~3km/h
용법: 암석 드릴링, 홀 드릴링, 하드 록 드릴링
압력: 5 바
등반 능력: 30 °
애플리케이션: 착암기, 광석, 광산
기계 유형: 시추 장비
유형: 로타리 드릴링 리그
차원 (L*W*H): 3800*1910*2200mm
무게: 5000kg
특징: 높은 드릴링 효율, 수력 제어용, 경쟁력있는 가격
강조하다:

portable top hammer drilling rig

,

mining DTH drill rig machine

,

manufacturer top hammer DTH rig

기본 정보
원래 장소: 중국 저장성
브랜드 이름: SANROCK
인증: CE ISO 9001:2015
모델 번호: T55
결제 및 배송 조건
포장 세부 사항: 기계 용 누드 패키지, 예비 부품 용 목재 상자 패키지 또는 고객 요구.
배달 시간: 15-25일
지불 조건: L/C, D/A, D/P, T/T, 서부 동맹, MoneyGram
공급 능력: 한 달에 5000 세트/세트
제품 설명

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 0

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 1

Small top hammer drilling rigs are highly portable due to their compact and lightweight design.

They can be easily transported to various job sites, including remote or difficult - to - access areas.

Whether it's a small - scale construction project in a narrow urban alley, a geological exploration

in a mountainous region, or a mining operation in a confined space, these portable rigs can be

quickly deployed. Some models can even be carried by a single person or transported on a small

vehicle, significantly reducing the logistical challenges associated with equipment movement.

The top hammer drilling technology they employ provides high - energy impacts directly to the

drill bit. This results in efficient penetration into different types of rock formations.

They can be adjusted to work with various drill bit sizes and types, allowing for different boreholediameters and drilling depths to meet specific project requirements.

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 2

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 3Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 4Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 5

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 6

Feature:

In terms of maintenance, these rigs are relatively easy to service. Their simple and modular designmeans that components are easily accessible for inspection, repair, or replacement.

This reduces downtime and maintenance costs, ensuring that the rigs can stay in operation for

longer periods with minimal disruptions. Furthermore, safety features are built into these portablerigs. Many models come with advanced control systems that allow operators to precisely control

the drilling process, reducing the risk of accidents. Additionally, safety guards and enclosures aredesigned to protect operators from moving parts and potential hazards during operation.In conclusion, Their portability, powerful performance, adaptability, easy maintenance, and safety

features make them an ideal choice for professionals across different industries.

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 7Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 8

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 9



Products Description

Product name
Drilling Rig
Power Parameters
Engine Model
4BTA3.9-C80-II
Rated Power
60kw at 2200rpm
Moving Parameters
Movement Speed
2.5km/h,3km/h
Climbing ability
30°
Machine parameters
Dimension
3800*1910*2200mm
Weight
5000kg
Clearance
260mm
Compressor Parameter
Air consumption
1.8-5 m3/min
Pressure
5 bar
Drilling parameters

Diameters
40-100mm
Depth
20m
Rock Drill
Weight
120kg
Length(without shank adapter)
655mm
width
299mm
height
204mm
Impact power
12.5kw
Max pressure
160Mpa
Flow rate
80L/min
Impact frequency
63HZ
Max Impact energy
200J


Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 10

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 11

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 12Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 13

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 14

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 15

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 16



Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 17Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 18





Company Profile

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 19

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 20

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 21

1.What can you buy from us?

DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill rod,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.



2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.



3.How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
