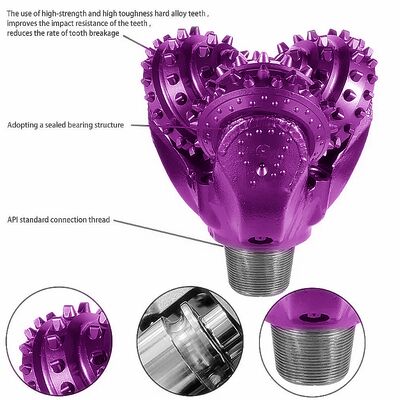

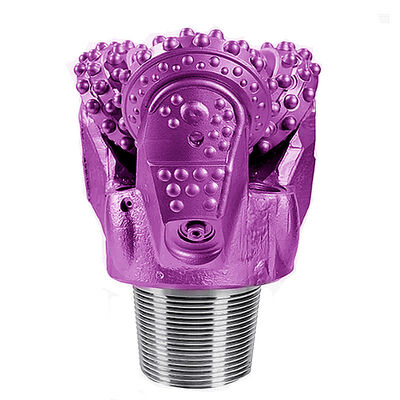

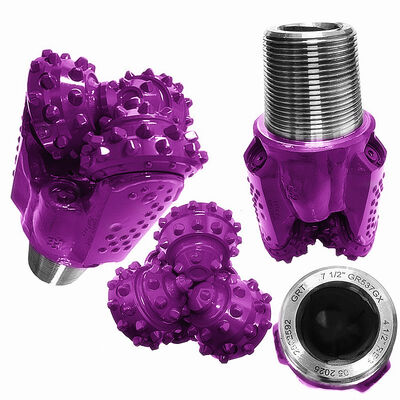

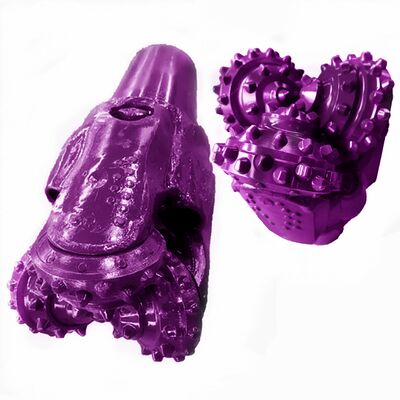

The three-cone roller drill bit represents a pinnacle of drilling efficiency and
mechanical reliability. Its triple-cone design achieves optimal force distribution
across the borehole, combining balanced weight-on-bit (WOB) application withminimized vibration in diverse formations. Precision-machined cones, equippewith interlocking tungsten carbide inserts or durable milled teeth, deliver superiorrock fragmentation—excelling in everything from soft sandstone to abrasive granite.
The optimized journal bearing system, reinforced with multi-layered seals and
high-temperature grease, ensures prolonged operational integrity even under
extreme axial loads and RPMs. Advanced cone offset angles enhance self-cleaningcapability while maintaining directional stability, critical for complex well profilesIntegrated hydraulic nozzles optimize fluid flow for efficient cuttings removal andbit cooling, preventing balling in clay-rich strata. Compliant with API specifications,this versatile tool reduces total drilling costs through extended service life (up to 40%
longer than dual-cone designs) and consistent ROP performance in oil, gas, geothermal,and mineral exploration. Its modular adaptability supports tailored configurations for
challenging terrains, making it a universal solution for modern drilling campaigns.
Products Description
|
|
|
|
Notes for the use of roller cone bits:
1 .Before the drill bit is down, it is necessary to confirm that the bottom of the well is clean, free of grit, and no metal falling.
2. Check if the thread connection screw of the roller cone bit is intact and the nozzle is installed properly.
3. Run in hole needs to be stable, avoid stress and prevent drilling.
4. The last joint needs a large displacement to start the rotary table and keep reaming to bottom of the well., fully wash the well to prevent the debris from clogging the nozzle.
5. The shape of the bottom hole should be lightly pressed and slowly turned into contact with the bottom of the well, smalldrilling pressure, low speed, large displacement, small torque, and the speed is 40~60 rev / min, at least 30 minutes.
6. Determine the weight on bit and speed in combination with the actual conditions of the formation.
7. During drilling ahead, the operation should be smooth, drill feeding should be uniform, it is strictly forbidden to lift and release the drill sharply,drill string not well braked and drill string free fall.
8. If it is found that the drill bit stops making progress, the pump pressure increases and decreases obviously, the rate of penetration is suddenly decreased, and the torque is increased, lift the drill to check without delay.
Company Profile
1.What can you buy from us?
DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill rod,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
