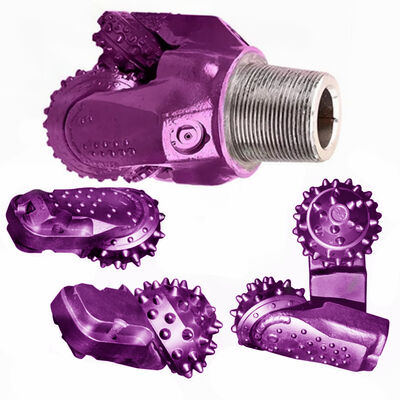

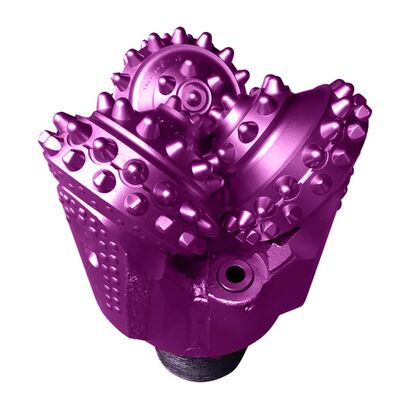

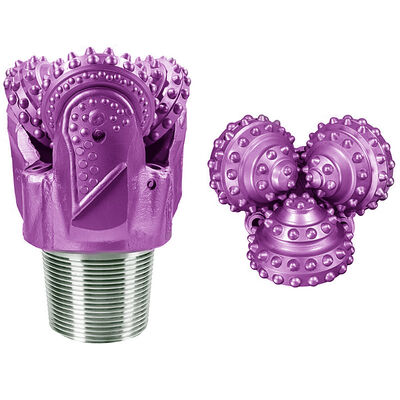

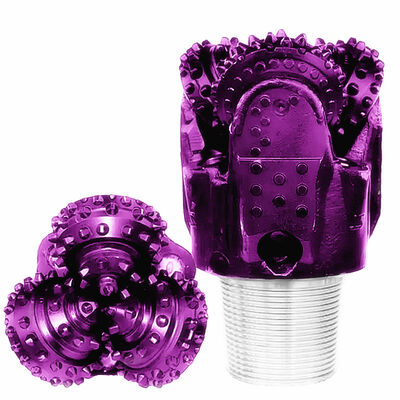

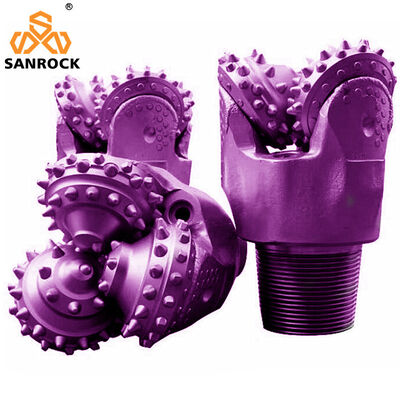

Roller Cone BitsA roller cone bit is a rotary drilling tool characterized by three rotating cones equipped
with hardened steel teeth or tungsten carbide inserts. These cones rotate independently
on precision bearings, enabling simultaneous crushing and grinding of rock formations.
Designed for oil/gas drilling, mining, and construction applications, its intermeshing teethconfiguration ensures efficient rock fragmentation across varied hardness levels.
The bit incorporates nozzle ports for drilling fluid circulation, which cools components,
removes cuttings, and enhances penetration rates. Common configurations include sealed
bearing systems for extended lifespan and specialized seals to withstand high downhole pressures.Roller cone bits demonstrate adaptability to diverse lithologies, balancing durability and
cost-effectiveness in medium-to-hard sedimentary layers. Variations range from rugged steel-tooth
designs for soft formations to ultra-wear-resistant tungsten carbide inserts for abrasive strata.
Products Description
|
|
|
|
Notes for the use of roller cone bits:
1 .Before the drill bit is down, it is necessary to confirm that the bottom of the well is clean, free of grit, and no metal falling.
2. Check if the thread connection screw of the roller cone bit is intact and the nozzle is installed properly.
3. Run in hole needs to be stable, avoid stress and prevent drilling.
4. The last joint needs a large displacement to start the rotary table and keep reaming to bottom of the well., fully wash the well to prevent the debris from clogging the nozzle.
5. The shape of the bottom hole should be lightly pressed and slowly turned into contact with the bottom of the well, smalldrilling pressure, low speed, large displacement, small torque, and the speed is 40~60 rev / min, at least 30 minutes.
6. Determine the weight on bit and speed in combination with the actual conditions of the formation.
7. During drilling ahead, the operation should be smooth, drill feeding should be uniform, it is strictly forbidden to lift and release the drill sharply,drill string not well braked and drill string free fall.
8. If it is found that the drill bit stops making progress, the pump pressure increases and decreases obviously, the rate of penetration is suddenly decreased, and the torque is increased, lift the drill to check without delay.
