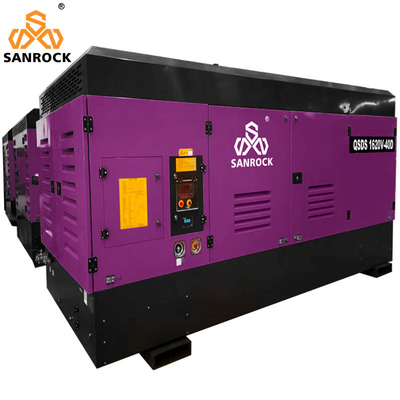

Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor

1 세트/세트
MOQ
negotiable
가격
Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
제품 이름: 스크류 공기 압축기, 공기 압축기 기계
이름: 디젤 엔진 스크류 공기 압축기
힘: 410kw
전력 공급원: 디젤
압력: 21-25bar/21-34bar
공기 소비: 31-29m²/분 36.5-32m²/분
속도: 1600/1400rpm 1830/1400rpm
연료 탱크 용량: 700L
윤활유용량: 120L
냉각 방법: 둘다 이용 가능하여서 식는 공기 / 물
애플리케이션: 광업 프로젝트, 석탄, 광석
종류: 맙소사
핵심 부품: PLC, 압력용기, 엔진, 모터, 펌프, 베어링
구성: 고정형
크기 (L*W*H): 4100*1800*2050mm
무게: 5600 킬로그램
강조하다:

Mining Screw Air Compressor 34bar

,

Mobile Screw Air Compressor

,

Screw Air Compressor Machine 25bar

기본 정보
원래 장소: 중국 제장강
브랜드 이름: SANROCK
인증: CE ISO 9001:2015
모델 번호: 맞춤형
결제 및 배송 조건
포장 세부 사항: 기계를 위한 벌거벗은 패키지 또는 예비품을 위한 나무상자 패키지 또는 고객 요구.
배달 시간: 18-25 일 근무일
지불 조건: L/C, D/A, D/P, T/T, 웨스턴 유니온, 머니그램
공급 능력: 5000Set/Sets마다 달
제품 설명

Stationary Screw Air Compressor
A stationary screw air compressor is a robust, high-efficiency industrial air compression system designed for continuous operation in demanding environments. Utilizing dual rotary screw rotors, it delivers smooth, pulsation-free compressed air with energy efficiency and low maintenance requirements. The fixed installation ensures stability and noise reduction. Equipped with smart control systems, automatic drainage, and low-maintenance design, these compressors provide reliable performance in diverse environments.

Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor 0Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor 1



Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor 2

Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor 3

Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor 4Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor 5



Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor 6

Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor 7

Products Description

Brand Name:Sanrock
Product name: screw air compressor
Compressor
Pressure (bar)
21-25 21-34
Air consumption (m²/min)
31-29 36.5-32
Lubricating oil capacity(L)
120
Dual transformation
Dual
Engine
brand
Cummins
Mode
QSZ 13-C550
Power (kw)
410
Max working/idle speed (rpm
1600/1400 1830/1400
Cylinder No
6
Total displacement(L)
13
Emission standard
Stage Ⅲ
Fuel tank capacity (L)
700
Unit
xhaust port specifications *Quant
G2*1&G3/4*1
Wheel specifications *Quantity
Skid mounted
Noise[Db(A)]
85±3
Dimension (mm
4100x1800x2050
Weight (kg)
5600


Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor 8

Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor 7
Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor 10

Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor 11

Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor 12Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor 13

Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor 14Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor 15

Company Profile

Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor 16

Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor 17

Mining Screw Air Compressor Machine Pressure 34bar 25bar Mobile High Pressure Screw Air Compressor 18

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,hydraulic scaling rig,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,reverse circulation drilling rig,environmental drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.



2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.



3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
